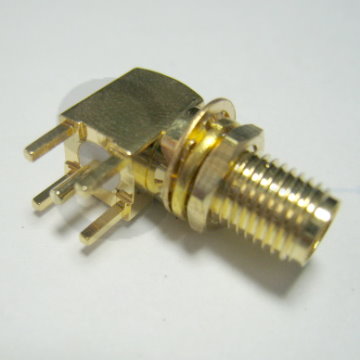

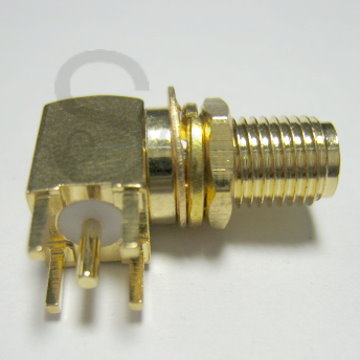

SMA-SFRAE
SMA PCB connector right angle Plug
RF Connector, Coaxial Connector
Specification:
Temperature range: - 65 ~ + 165 ℃
Vibration : MIL-STD-202, Method 213
Impedance : 50 ohms
Frequency range : DC ~ 12.4 GHz
Working voltage : 335V max
Withstand voltage : 1000 v max.
Contact resistance : Center contact 3 m ohms, Outer contact2 m ohms.
Insulation resistance : 5000 M ohms.
Insertion loss : 0.15 dB.
VSWR : Straight 1.15, Right angle 1.25.
Mating cycles : 500 cycles.
Material 7 Plating:
Shell : brass, gold plated.
Contact pin : Brass, gold plated.
Socket : beryllium or tin brass, gold plated.
Insulator : PTFE.
O-ring sealing : Silastic.
RoHS Compliant.
Trade Term:
1. Quoted Term: FOB
2. Payment Term: T/T, western union or PayPal .
3. Delivery Date: 20~30 days.
4. MOQ: 1 K.
5. Produce in Taiwan.
