USB-SDA04-AB

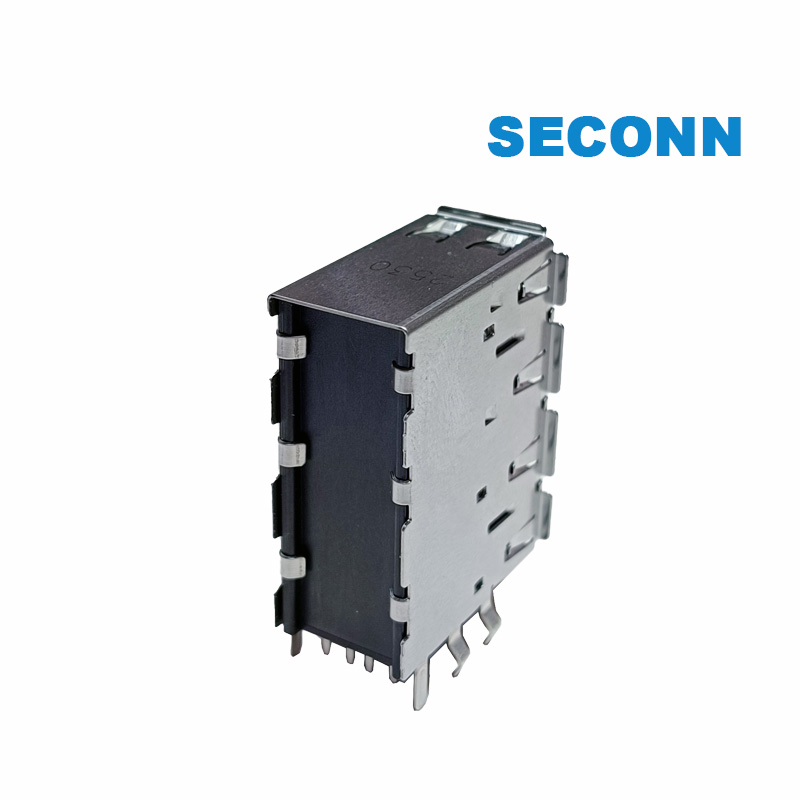

USB connector Quadruple A Flat 90 degree Dip type
Quadruple USB Connector, 4 Port USB Type A, 90 Degree Right Angle USB, DIP USB Connector, PCB Mount USB, Industrial USB Connector, High Density USB, Kiosk USB Hub Connector, USB Charging Station

Product Overview
This USB Type-A connector with a flat 90-degree DIP (Dual In-line Package) design. Engineered for robust, space-saving vertical PCB mounting, it features full gold-plated contacts and stainless steel shells. Ideal for industrial control panels, kiosks, and multi-port charging/data stations requiring reliable, high-cycle USB connectivity.

Key Features:

1. Compact Multi-Port Layout: Quad 90° DIP design saves panel space with four USB-A ports for high-density applications.

2. Gold-Plated Reliability: Gold-plated brass contacts ensure low-resistance, corrosion-free connections for superior data/power transfer.

3. Rugged Metal Construction: Stainless steel shell provides EMI shielding, durability, and reliable solderability for industrial environments.

4. High-Temp Housing: UL94V-0 rated glass-filled housing withstands high temperatures with flame-retardant stability.

5. High-Cycle Durability: Rated for 1500+ mating cycles with optimized insertion force for long-term repeated use.

Competitive Advantages

1. Space-Optimized Design: The flat 90-degree DIP layout saves critical behind-panel depth, perfect for slim-profile equipment and efficient PCB assembly.

2. Industrial-Grade Durability: The combination of stainless steel shells, high-cycle rating (1500 cycles), and salt spray resistance ensures long-term reliability in demanding commercial and industrial settings.

3. Superior Signal & Power Delivery: Gold-plated contacts and robust construction provide stable, low-resistance paths essential for both data integrity and consistent power delivery in multi-port applications.

Specification:
Material:
1) Housing: PBT or PA66 with 30% GF, UL94V-0, Black
2) Contacts: Brass
3) Shell: SUS430
4) Middle Bullet: SUS304
Finish:
1) Contacts: Gold Plated on Contact Area
                    80u" Min. Matte-Tin Plated on Solder Tail
                    50u" Min. Nickel Underplated Overall
2) Shell: 50u" Min. Matte-Tin Plating on Solder Tail Area

Electrical:
1) Contact resistance: 50mΩ max
2) Dielectric Withstanding Voltage: 500V AC(rms)
3) Insulation Resistance: 100MΩ min

Mechanical:
1) Mate Force:35 Newtoms(MAX)
    Unmate Force: 10 Newtoms(MIN)
2) Durability: 1500 cycles

Environmental Performance:
1) Operating Temperature:-25℃~+85℃.
2) Salt Spray Test: 8H. Min.

RoHS & REACH Compliance.

Typical Applications:

1. Industrial PCs & HMIs: Control panels, operator interfaces, factory automation equipment.

2. Public Kiosks & POS Systems: Ticketing machines, information displays, payment terminals.

3. Multi-Port Charging Stations: For retail, hospitality, offices, and transportation hubs.

4. Telecom & Networking Equipment: Routers, switches, and servers requiring additional USB host ports.

5. Medical Carts & Diagnostic Devices: Where reliable peripheral connectivity is needed.

6. Gaming & Entertainment Consoles.

Ordering Information:

1. Minimum Order Quantity (MOQ): 2,000 pcs

2. Standard Delivery Lead Time: 4-5 weeks

3. Trade Terms: EXW Taiwan

4. Payment Methods: T/T (Bank Transfer) or PayPal

5. Contact: For quotes or orders, email serena@seconn-co.com or call +886-2-22219011.
