SE-S-0445

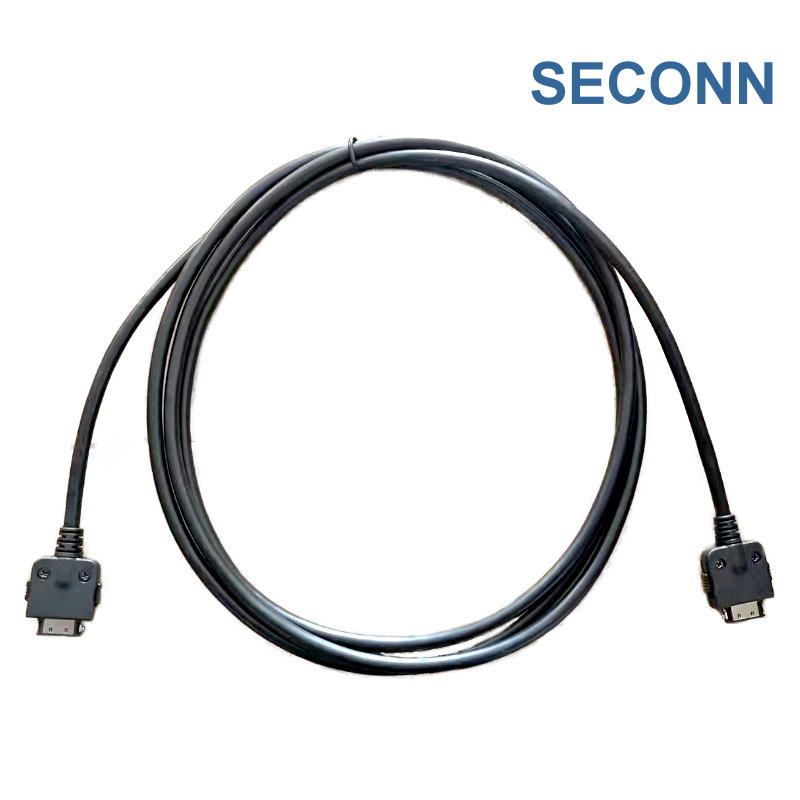

Hirose cable assembly ST40X 10 Pin Male to 18 Pin Male Cable assembly
Hirose ST40X cable, automotive cable assembly, industrial interconnect, shielded control cable, compact wiring harness, vehicle add-on device cable, factory automation cable, reliable signal transmission cable

Product Overview
A compact, high-performance shielded cable assembly engineered for industrial and automotive add-on device interfaces. Featuring robust Hirose ST40X connectors, it ensures reliable signal conversion and stable data transmission in demanding, space-constrained environments.

Key Features:

1. Triple-Layer Shielding: Combines Aluminum Mylar (AM) + Braid + Drain Wire for superior EMI/RFI protection.

2. Compact & Durable: 4.0mm OD PVC jacket with black PVC (30P) overmolds for strain relief in tight spaces.

3. 100% Electrical Tested: Each unit undergoes open, short, miswire, and hi-pot testing for guaranteed reliability.

4. Automotive-Grade Reliability: Designed to meet the strict stability and size requirements of vehicle control systems and add-on devices.

5. Compliant Construction: RohS and REACH compliant for environmental safety.

Applications:

1. Automotive Add-on Control Systems: Ideal for connecting control modules, sensors, and aftermarket devices in vehicles.

2. Industrial Automation & Robotics

3. PLC (Programmable Logic Controller) Interfacing

4. Test & Measurement Equipment

5. Factory Machinery

Specification:
1) Cable Composition: UL2835 30AWG x 10C+ AM+D+Brain Black PVC Jacket, O.D.: 4.0mm
2) Connector1: 10 Pin Male Assembly Type HIROSE:ST40X-10S-CV(30)
3) Connector2: 18 Pin Male Assembly Type HIROSE:ST40X-18S-CV(30)
4) All Connector Overmold Black PVC 30P
5) Compliance: RoHS/REACH Compliant

Electrical Test Conditions:
1) 100% Open, Short, Miswire Test
2) Contact Resistance: 3Ω Max
3) Insulator Resistance: 20MΩ Min, DC 300V/0.01sec

Ordering Information:

1. Quoted Terms: EXW Shenzhen, China

2. Payment: T/T or PayPal

3. Delivery: 4-5 weeks

4. MOQ: 100 pcs

For further inquiries or to place an order, please contact us at serena@seconn-co.com or call +886-2-22219011.
